INTRODUCING OUR PRODUCT
PNEUMA
WHAT IS PNEUMA?
The word “Pneuma” comes from the ancient Greek word for "breath" reflecting the deep connection between clean air and life. Our Pneuma is IoT-based Air Quality Monitoring System integrated with smartphones, protects health and the environment by using real-time sensors and cloud connectivity, it monitors pollutants like CO2 and toxic gases, sending instant alerts and insights to the phone
MAIN FEATURES
THE POWER OF PNEUMA
This system is designed to monitor air quality in real-time by utilizing IoT technology. The MQ2 and MQ135 sensors are used to detect the presence of hazardous gases such as smoke, LPG, CO, NH3, and other pollutants. The DHT11 sensor functions to measure air temperature and humidity, while the BME280 provides additional data in the form of air pressure and more accurate temperature and humidity measurements.
ESP32
Microcontroller with Wi-Fi and Bluetooth for IoT projects
RTC
Tracks current time, even without power
MQ2 Sensor
Tracks the presence of various gases, like smoke, LPG (liquefied petroleum gas), propane, methane, alcohol, and hydrogen
Alarm Buzzer
Produces sound for alerts
LCD Monitor
Displays data from the project
MQ135 Sensor
Tracks gases like carbon dioxide and monoxide
Blinking Light
Light that blinks for signaling
BME280 Sensor
Pressure and altitude sensor
DHT11 Sensor
Tracks temperature and humidity

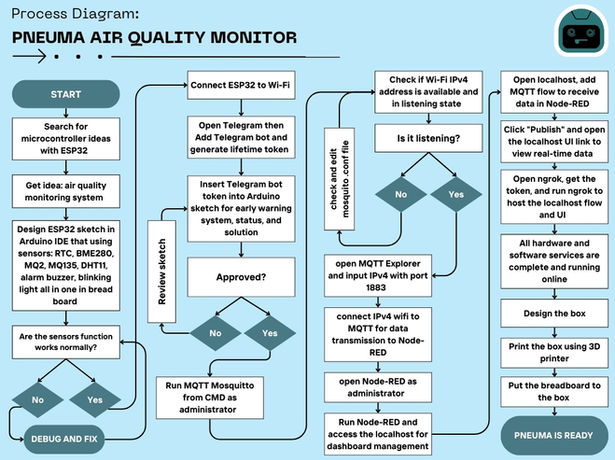

How Was Pneuma Created?
AIR QUALITY INDEX (AQI) GRAPH
The Air Quality Index (AQI) is a scale used to show how clean or polluted the air is, and what associated health effects might be a concern for you. The lower the AQI, the cleaner the air.
Source : Here
_edited.jpg)
Why You Should Care
-
🌱 Short-Term Exposure: Irritated eyes, nose, and throat; fatigue; asthma triggers.
-
🫁 Long-Term Exposure: Respiratory disease, heart disease, reduced lung function, cancer.
🧠 How to Use PNEUMA
-
🏡Placed the device in a place that is easy to reach
-
🌐 Visit: bit.ly/pneuma-uiweb
-
📍 Allow location or search your city.
-

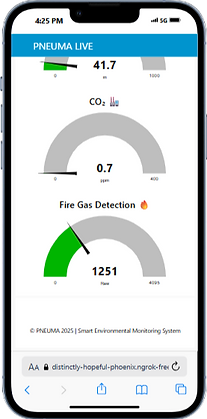

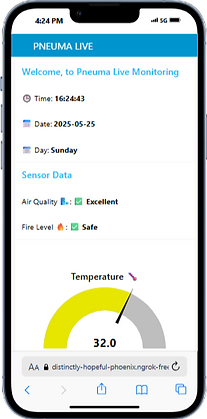

📊 View current AQI and pollution levels.
-
📱 Download telegram app for instant alerts and tips.
-
🛠️The tool will work every second and will update periodically.
-
🚨If the air level in the room touches an unhealthy indicator, the device will emit a sound from the alarm as a warning and a notification will appear 3x.
-
🧼 Take action: use air purifiers, wear masks, or stay indoors when AQI is high.
